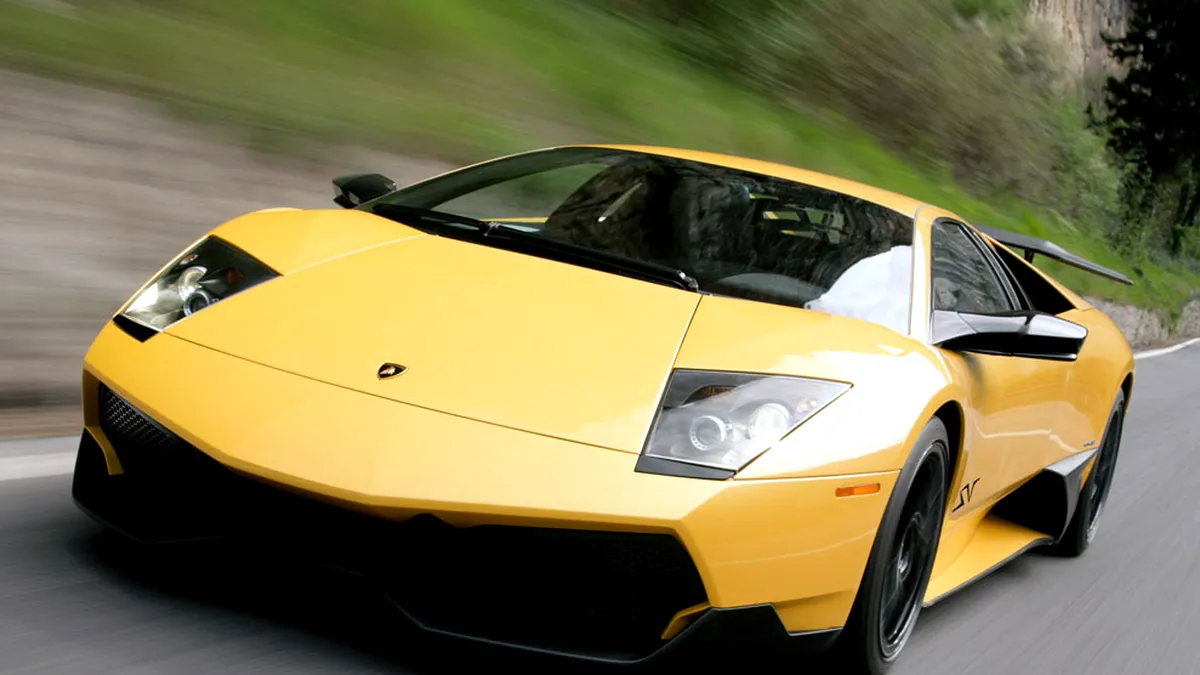

Lamborghini Murcielago LP 670-4 SuperVeloce la Geneva 2009

Autor: Cosmin Iordache acum 11 ani Prezentari

Technical data – Lamborghini Murciélago LP670-4 SuperVeloce

Frame: High strength tubular steel structure with carbon fiber components

Bodywork: In carbon fiber, except roof and door external panels (steel)

Steering

  • Type: Mechanical (rack and pinion) power-assisted
  • Right-hand turning circle: 12.55 m (41.17 ft)

Wheels and tires

  • Front: 245/35 ZR 18"
  • Rear: 335/30 ZR 18"

Engine

  • Type: 12 cylinders at 60°
  • Bore and stroke: 88mm x 89 mm (3.46 in x 3.50 in)
  • Displacement: 6496 cc. (396.41 in³)
  • Compression ratio: (11 ± 0.2):1
  • Maximum power: 670 hp (493 kW) at 8000 rpm
  • Maximum torque: 660 Nm (487 lb-ft)at 6500 rpm
  • Engine position in vehicle: Longitudinal central-rear
  • Cylinder heads and engine block: Aluminum
  • Intake system: Variable geometry with 3 operating modes
  • Timing: 4 valves per cylinder, 4 overhead camshafts
  • Timing gear transmission: 2 chains
  • Continuous timing variator (int. and ex.): Electronically controlled
  • Ignition system: Static type ignition system with individual coils (one for each spark plug) -Firing sequence: 1-7-4-10-2-8-6-12-3-9-5-11
  • Fuel system/injection: Lamborghini LIE electronic engine control unit, multipoint, sequential timed, DRIVE BY WIRE
  • Lubrication system: dry sump, 2 recovery gear pumps, 1 gear delivery pump (high pressure)
  • Cooling system: liquid cooled, with pressurized circuit

Transmission

  • Type of transmission: Permanent all-wheel drive with Viscous Traction system
  • Gearbox: 6-speed e-gear
  • Clutch: Dry single disc
  • Clutch disc diameter: 272 mm (10.7 in)
  • Traction Control System: T.C.S.
  • Gearbox – E-Gear & Manual
  • 1st: 1:3.091
  • 2nd: 1:2.105
  • 3rd: 1:1.565
  • 4th: 1:1.241
  • 5th: 1:1.065
  • 6th: 1:0.939
  • Reverse: 1:2.692

Brakes

  • 4 self-ventilated rotors with pedal control, hydraulic transmission with dual independent circuits, one for each axle with vacuum servo.
  • ABS antilock device + DRP function
  • Carbo ceramic brakes (CCB)
  • Handbrake: Mechanical, acting on rear wheels
  • Front rotor: Ø 380 x 38 mm (Ø 14.96 in x 1.5 in)
  • Front caliper cylinders: n.6 (32-36-38 mm) (1.26 in -1.42 in-1.5 in)
  • Rear rotor: Ø 380 x 38 mm (Ø 14.96 in x 1.5 in)
  • Rear caliper cylinders: n.6 (32-36-38 mm) (1.26 in -1.42 in-1.5 in)

Suspension

  • 4-wheel independent articulated quadrilateral system. Hydraulic shock absorbers and coaxial coil springs. Suspension with dual front and rear struts, anti-roll, anti-dive and anti-squat bar.

Dimensions

  • Wheelbase: 2665 mm (104.92 in)
  • Total length: 4705 mm (185.23 in)
  • Total width: 2058 mm (81.02 in)
  • Total height: 1135 mm (44.69 in)
  • Dry weight: 1565 Kg (3450.2 lb)
  • Front track width: 1635 mm (64.37 in)
  • Rear track width: 1695 mm (66.73 in)
  • Front overhang: 1090 mm (42.91 in)
  • Rear overhang: 950 mm (37.40 in)
  • Maximum overall width with external rear-view mirrors: 2240mm (88.19 in)
  • Weight distribution front/rear: 42% – 58%

Liquid capacities

  • Fuel tank: 100 Liters (26.4 gal)
  • Engine oil: 12 Liters (3.17 gal)
  • Gearbox oil: 3,5 Liters (0.92 gal)
  • Front differential oil: 1 Liter (0.26 gal)
  • Rear differential oil: 2,5 Liters (0.66 gal)
  • Cooling circuit: 15 Liters (3.96 gal)

Performance

  • Top speed with small spoiler: 342 km/h (212.5 mph)
  • Top speed with big wing: 337 km/h (209,4 mph)
  • Acceleration 0-100km/h: 3.2 s

Fuel Consumption (according with DIR 1999/100/CE)

  • City: 32 L/100km
  • Highway: 13.7 L/100
  • Combined: 20.6 L/100
  • CO2 Emission: 480 g/km

Fuel Consumption USA (according with US EPA guidelines)

  • Manual – City cycle: 8 mpg; Highway cycle: 13 mpg; Combined: 10 mpg
  • E-Gear -City cycle: 9 mpg; Highway cycle: 14 mpg; Combined: 11 mpg

Frame: High strength tubular steel structure with carbon fiber components

Bodywork: In carbon fiber, except roof and door external panels (steel)

Steering

  • Type: Mechanical (rack and pinion) power-assisted
  • Right-hand turning circle: 12.55 m (41.17 ft)

Wheels and tires

  • Front: 245/35 ZR 18"
  • Rear: 335/30 ZR 18"
